Product Details Description

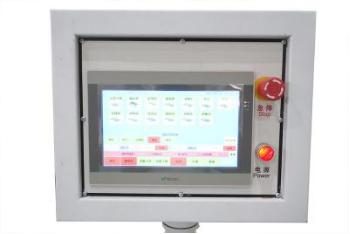

Touchscreen Control
Weinview industrial touchscreen display — intuitive interface for easy parameter setting and machine control.

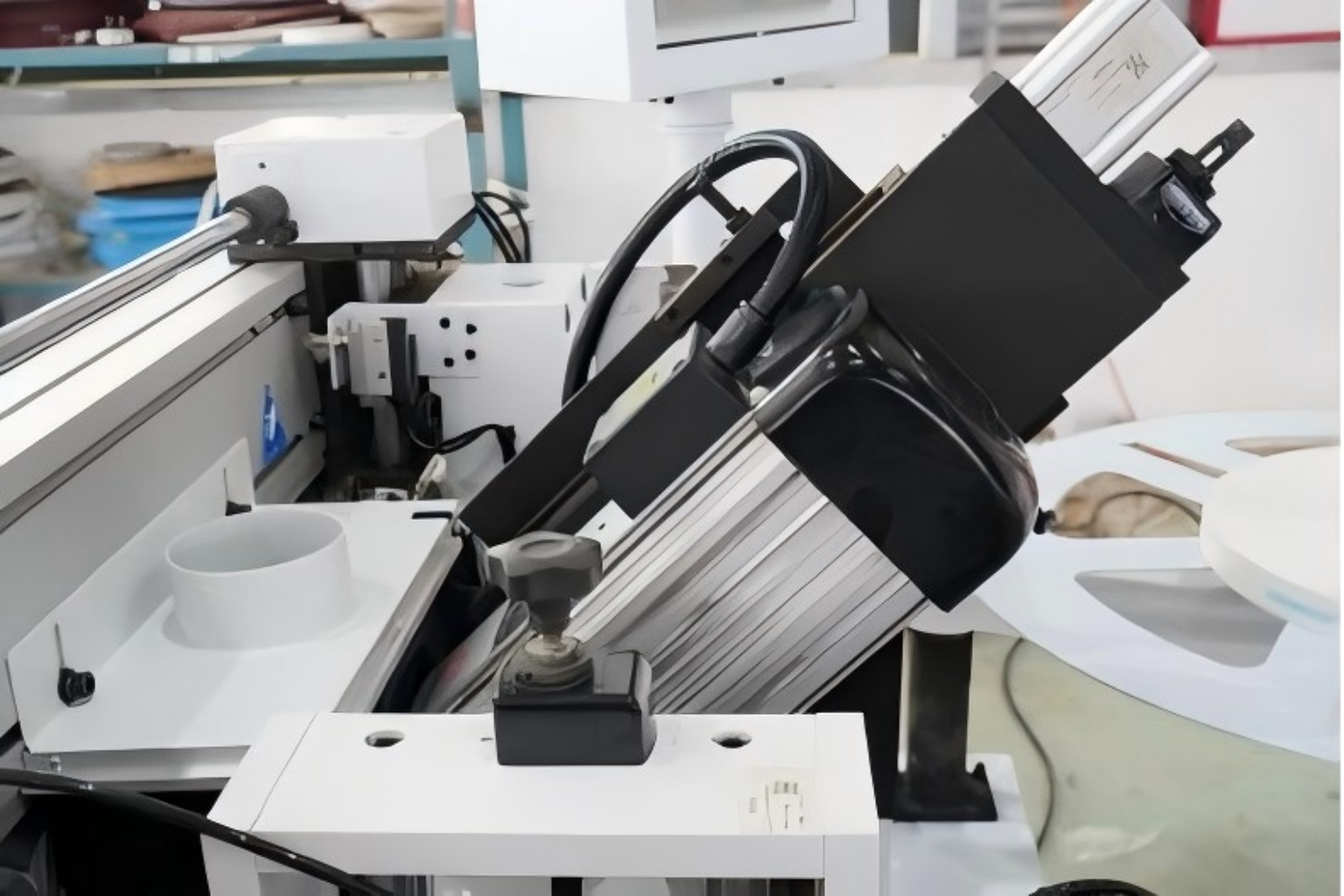

45° Saw Unit
The bevel saw cuts panel edges to a precise 45° angle, preparing the material for bevel edge banding.
Grooving Function
The grooving unit scores a precise channel on the panel surface to ensure accurate positioning and a cleaner, tighter edge band bond.

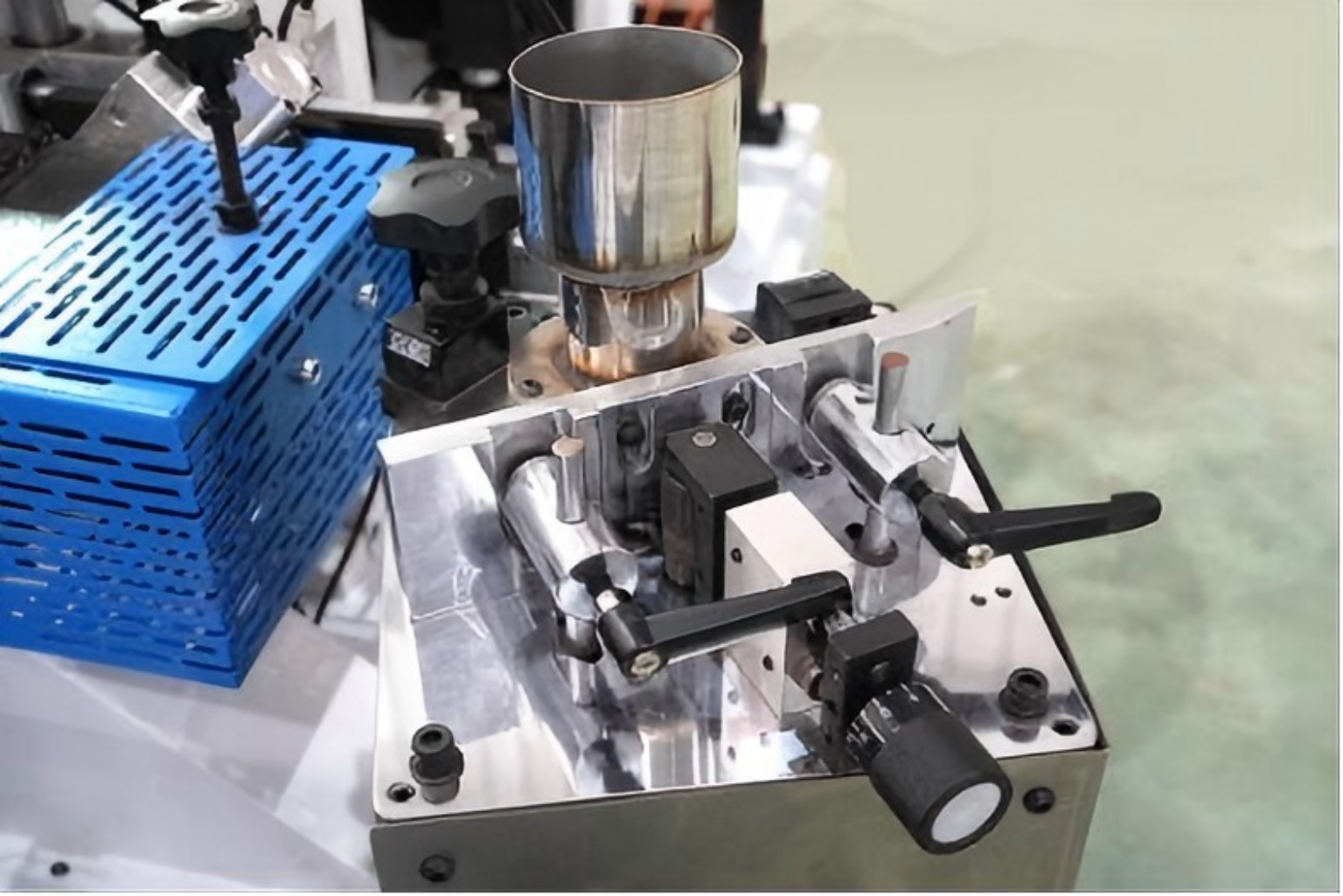

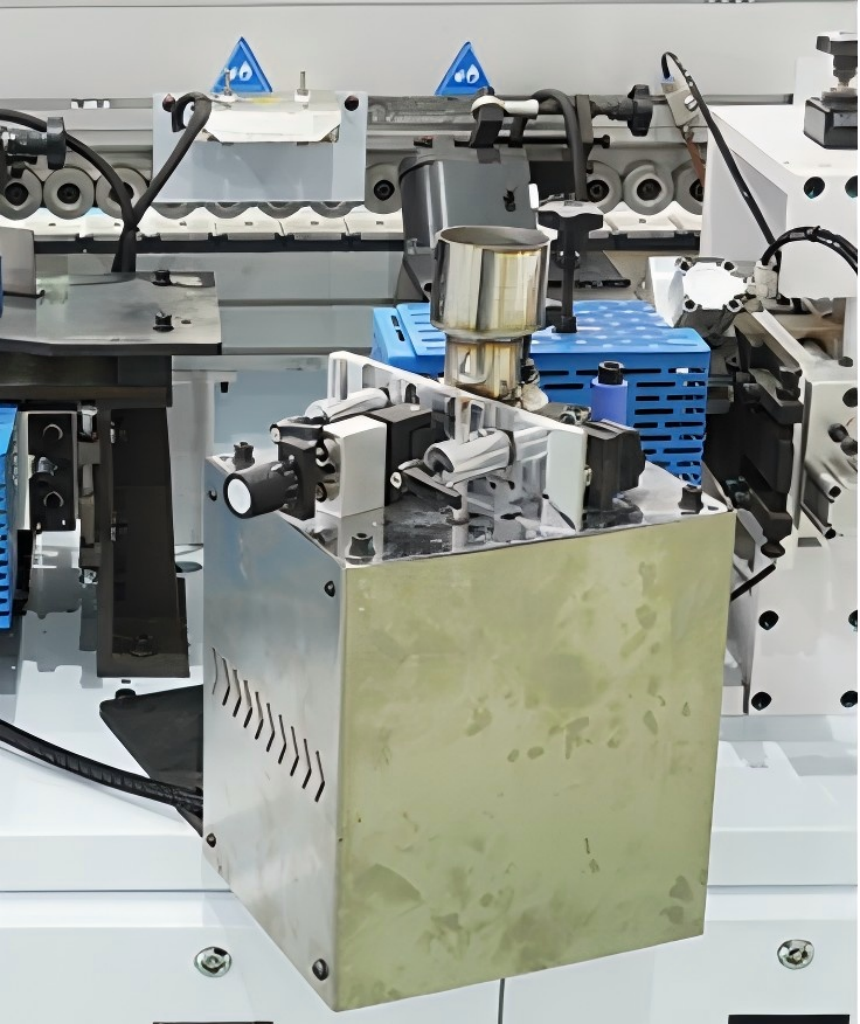

Bevel Glue Unit
Melts and applies hot-melt adhesive to the bevel edge face of the panel, ensuring full, even glue coverage before the edge band is pressed on.

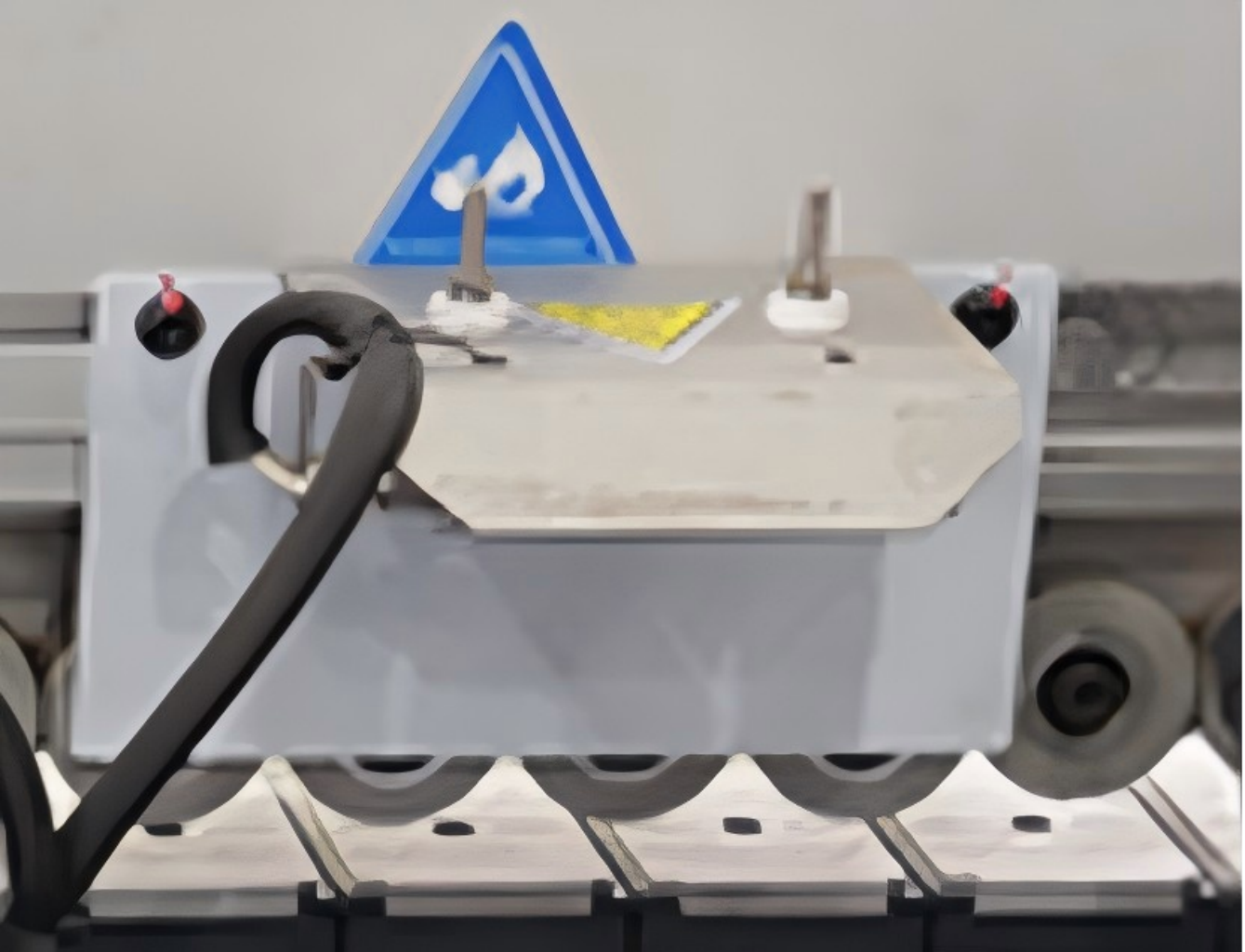

Heating Lamp 1
Keeps the glue at working temperature immediately after the bevel glue application, preventing premature cooling before bonding.

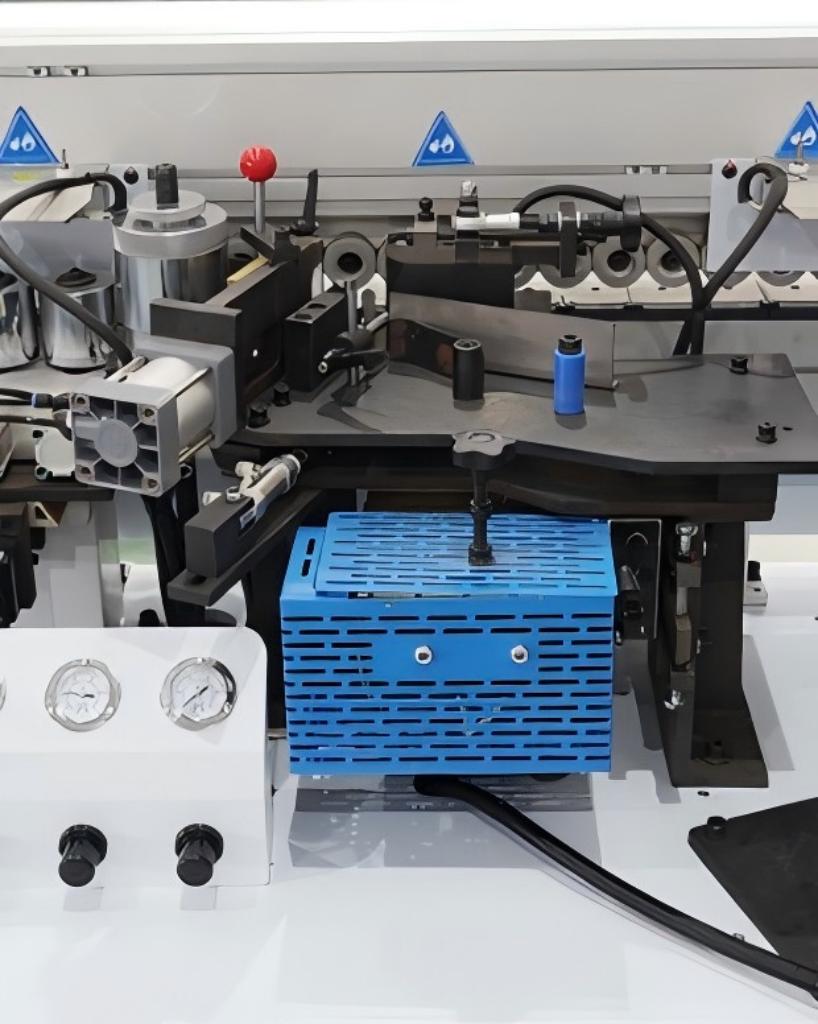

Straight Glue Unit
Melts and applies hot-melt adhesive to the straight (flat) edge face of the panel, providing consistent glue coverage for the straight edge band.

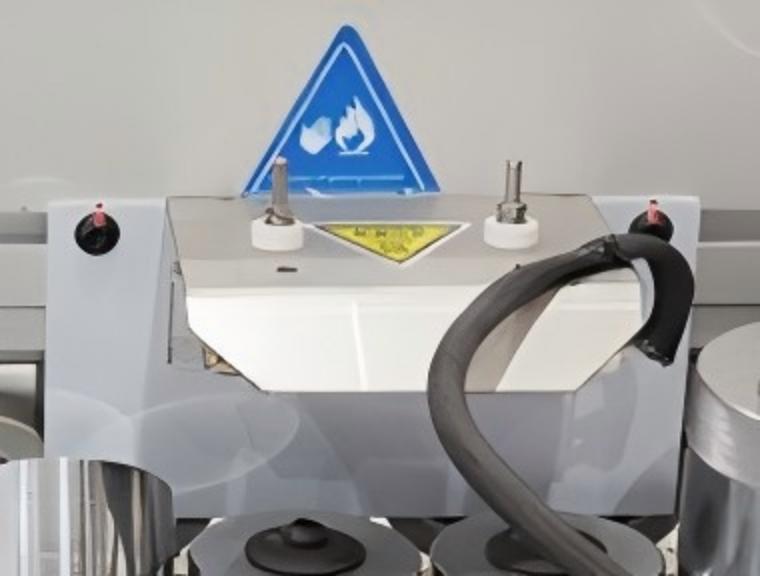

Heating Lamp 2
Maintains glue temperature after the straight glue unit, ensuring optimum bonding conditions for the straight edge band press.

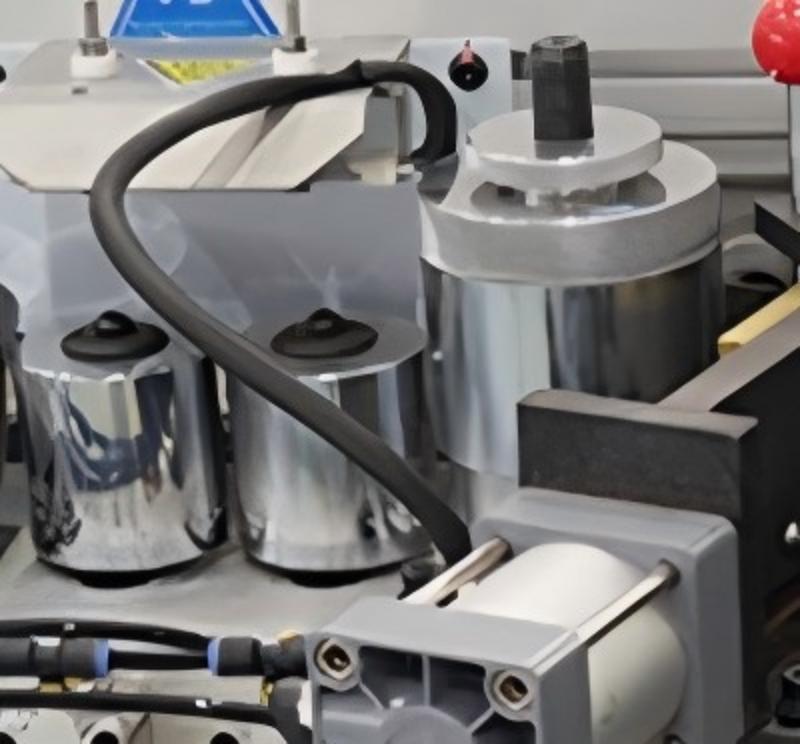

Straight Press Unit
Presses the straight edge band flat and evenly onto the panel. Press rollers include an integrated glue-scraper blade to prevent adhesive build-up under the band.

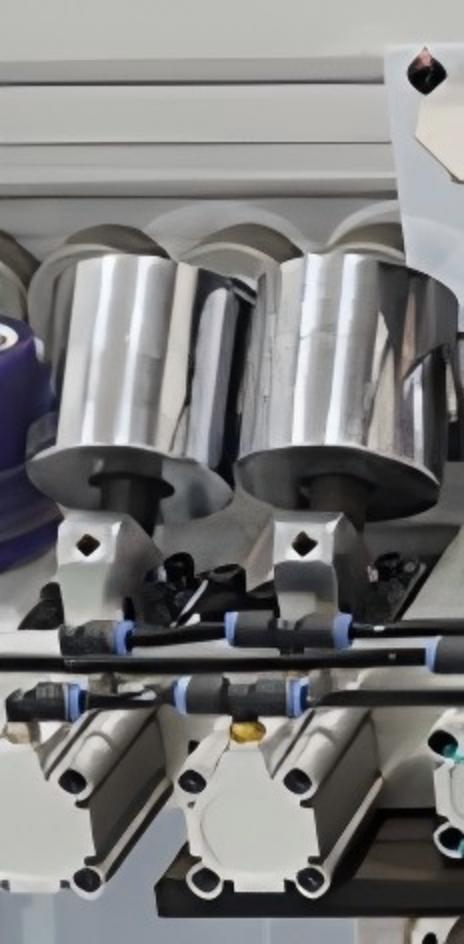

Bevel Press Unit
Presses the bevel edge band firmly onto the 45° edge face. Scraper-equipped rollers handle special bonding situations and make daily maintenance straightforward.

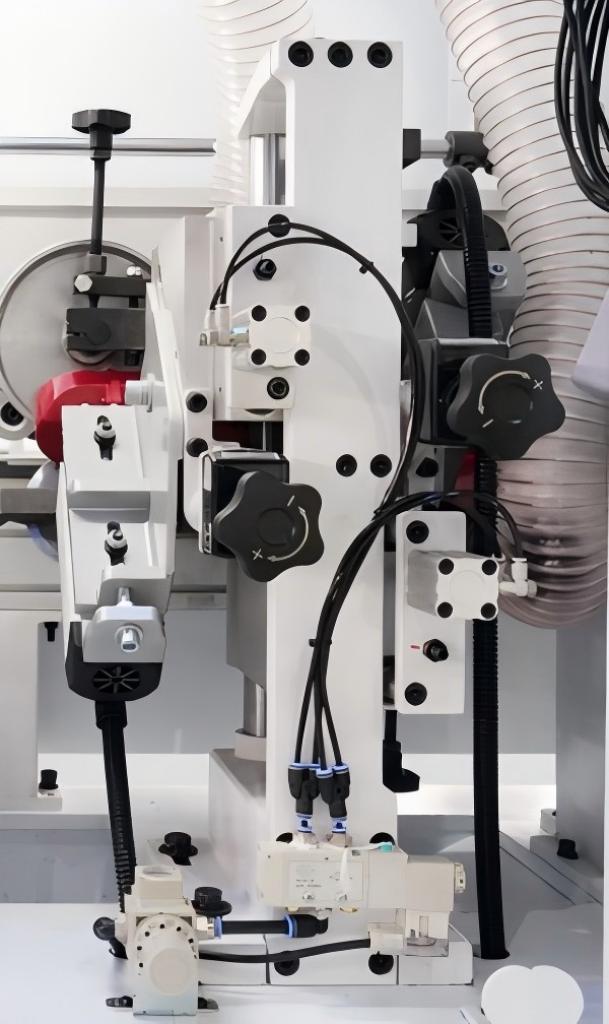

Straight Trimming Unit
Trims the upper and lower excess of the straight edge band flush with the top and bottom surfaces of the panel for a clean, flush finish.

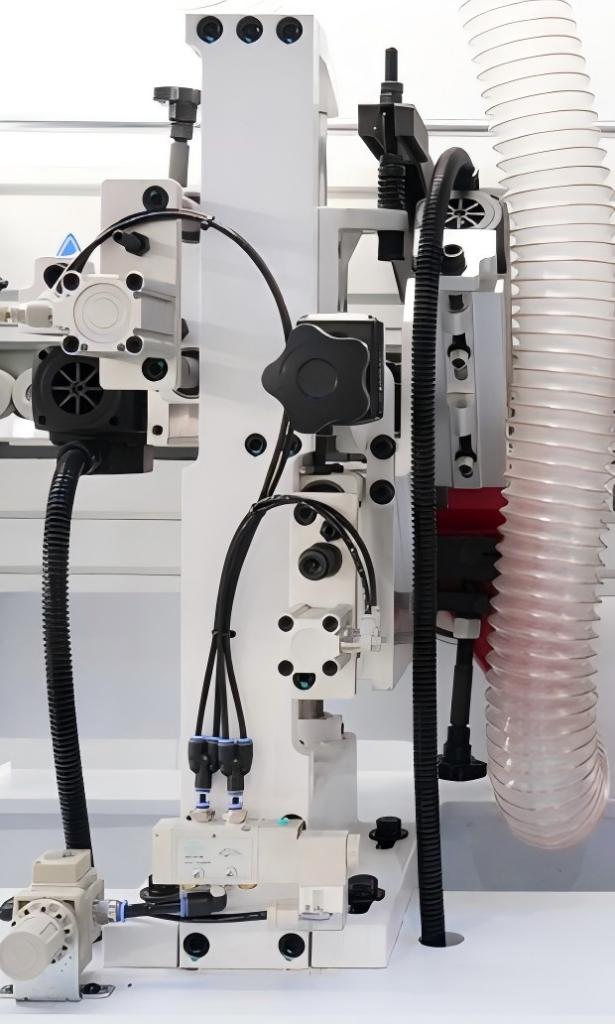

Bevel Trimming Unit
Trims the upper and lower excess of the bevel edge band flush with the top and bottom panel surfaces, completing the 45° edge profile.

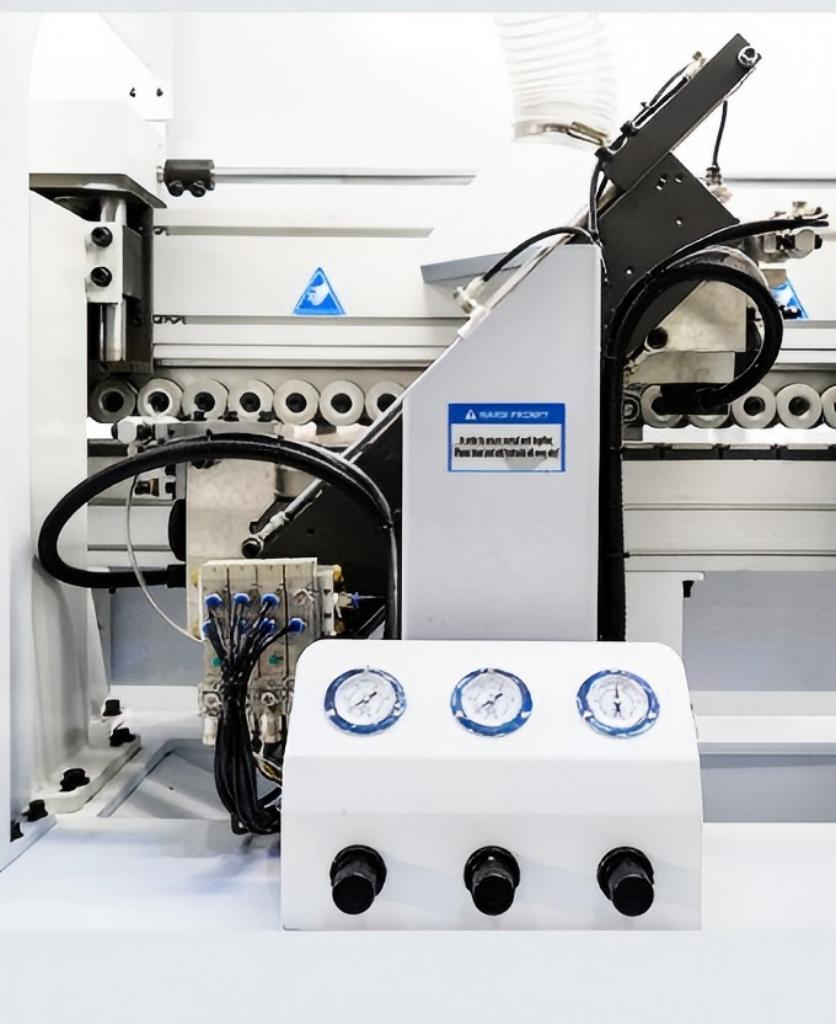

Front & Rear End Trim
Precision linear-guide motion cuts the leading and trailing ends of the edge band, ensuring a clean, smooth cut face on both ends.

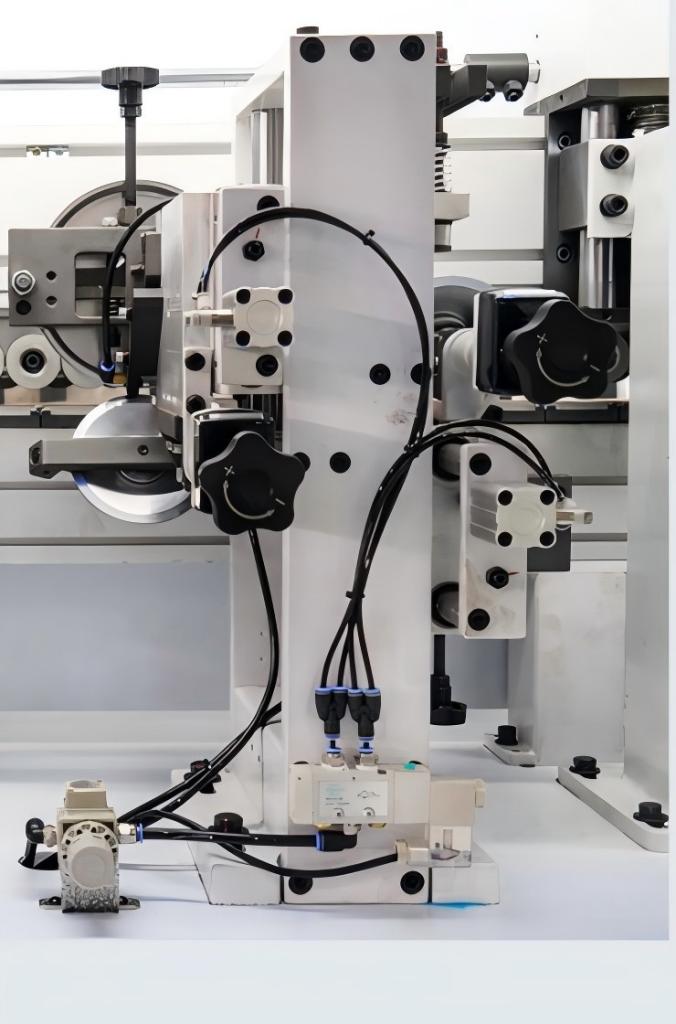

Straight Scraping Unit
Removes trimming tool marks from the straight edge band surface and scrapes away excess adhesive between the edge band and panel.

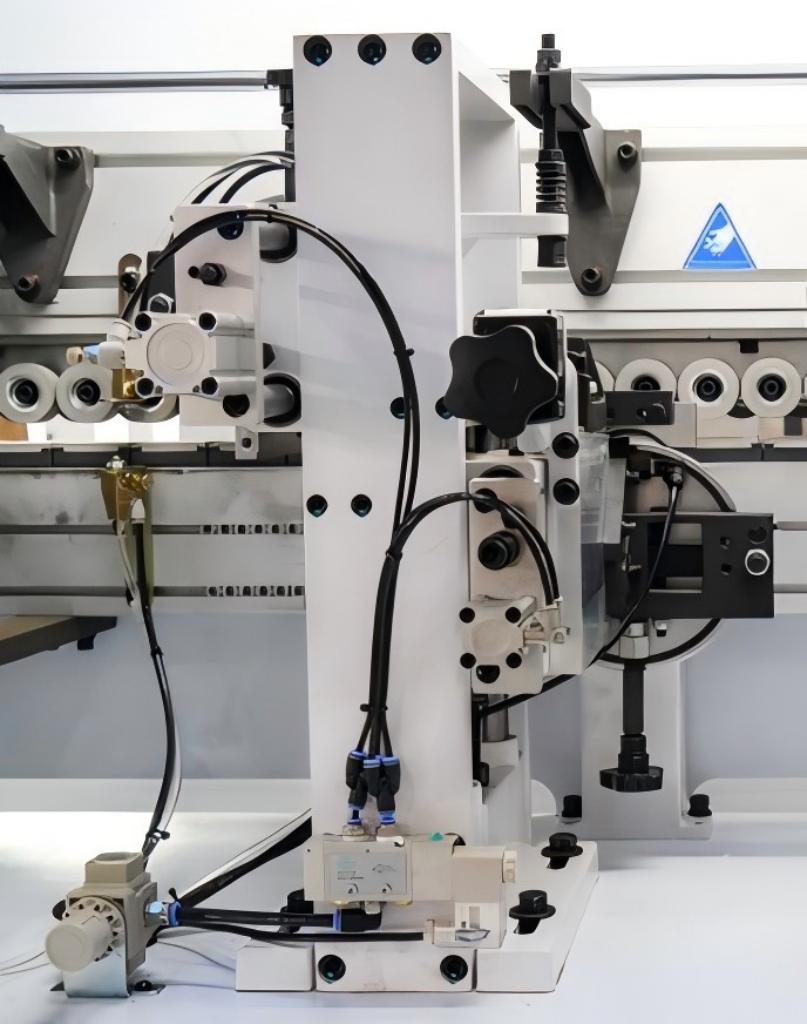

Bevel Scraping Unit
Removes trimming tool marks from the bevel edge band surface and scrapes away residual adhesive for a clean, polished bevel edge.

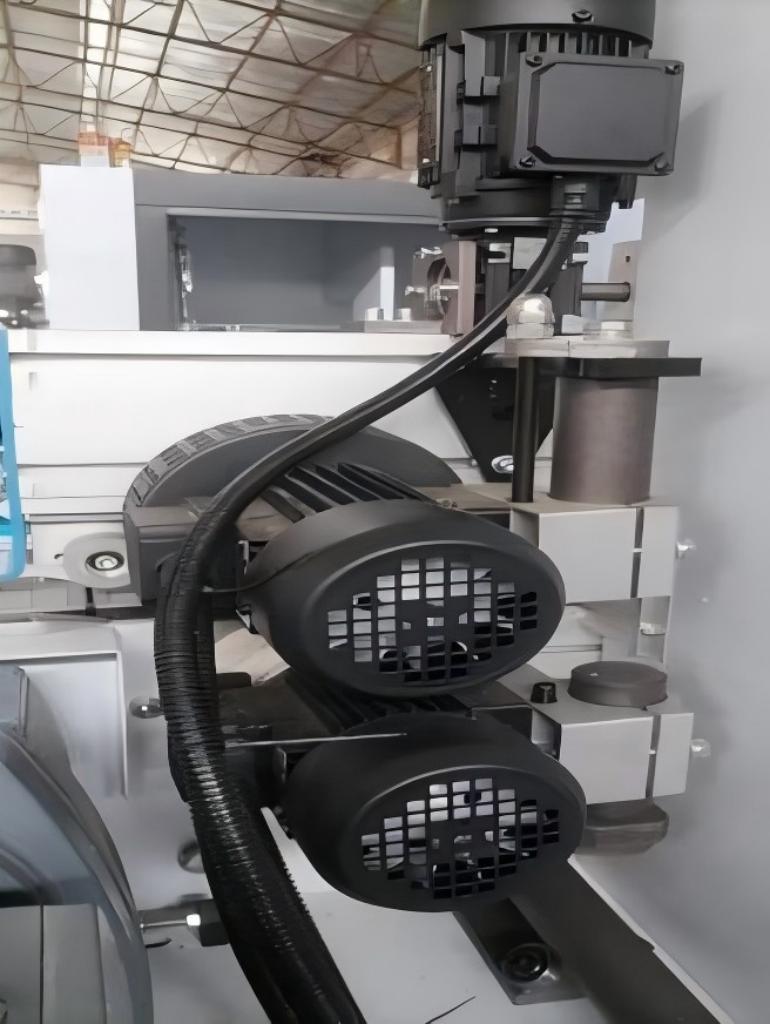

Dual Buffing Units
Cotton buffing wheels clean and polish the finished panel edges, leaving the edge band surface smooth, clean, and ready for delivery.
Technical Specifications
Parameter | Specification |
Model | NT-866 |
Total Motor Power | 24.25 KW |
Min. Panel Width | ≥ 150 mm |
Panel Thickness | 12 – 25 mm |
Straight-edge Band Thickness | 0.4 – 3 mm |
Bevel-edge Band Thickness | 1.0 – 2.0 mm |
Bevel-edge Band Width | 22 – 36 mm |
Straight-edge Feed Speed | 10 – 18 m/min |
Bevel-edge Feed Speed | 10 m/min |
Working Air Pressure | 0.7 MPa |
Overall Dimensions (L×W×H) | 7100 × 750 × 1600 mm |
