Product Details Description
Integrated machine frame
Heavy-duty, high-rigidity machine bed with a full-steel table base for excellent load capacity and long-lasting resistance to deformation.

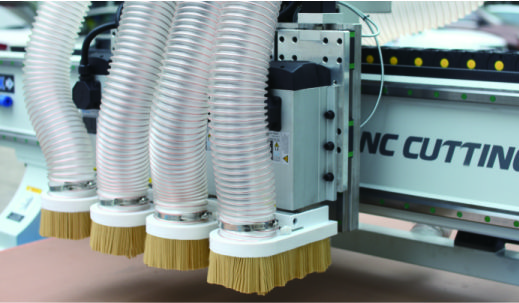

Servo drive motor
Powered by a 6 kW spindle motor at 18,000 rpm, the machine offers strong cutting performance and high-speed operation, ensuring smooth cutting surfaces without burrs or edge chipping.
Automatic tool setting device
High-precision automatic tool setting device, with a concealed interference-free design, and micron-level precision performance.
Dust-proof guide rails
Equipped with 30mm dust-proof guide rails, featuring excellent wear resistance, low vibration and high stability, which ensures precision retention during long-term operation.

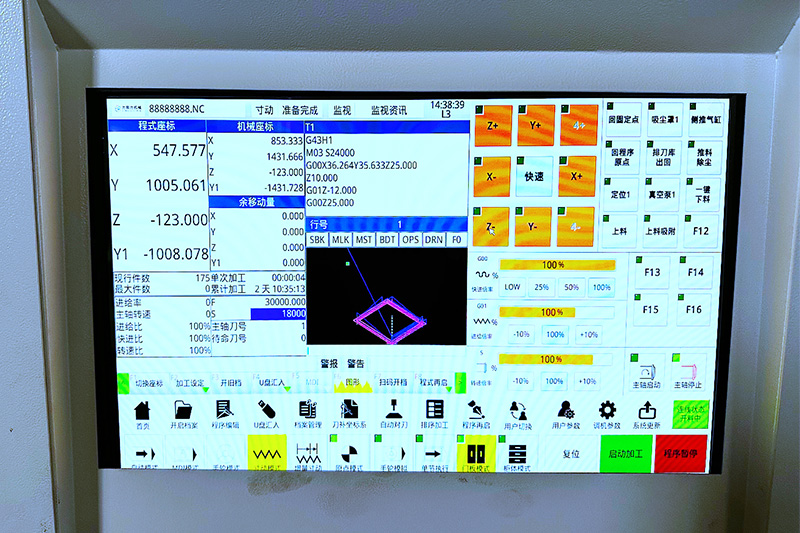

Taiwan LNC control system
Taiwan LNC control system, featuring a user-friendly interface and simple operation, can quickly read files and rapidly start up the machine.
Functionality & Finished Product Showcase
Drilling, cutting, profiling, engraving; it features high machining precision and fast processing speed, meeting the production requirements of custom whole-house furniture.
Technical Specifications
Parameter | Specification |
X Travel | 1220 mm |
Y Travel | 2750 mm |
Z Travel | 150 mm |
Feed Height | 50 mm |
Processing Accuracy | 0.1 mm |
Repeat Positioning Accuracy | 0.1 mm |
Control System | Baoyan 2200 CNC |
Servo Drive | European 1.5KW × 4 |
Max. Rapid Speed | 70,000 mm/min |
Max. Cutting Speed | 18,000–25,000 mm/min |
Spindle Power | 6KW × 4 Air-Cooled Spindles |
Spindle Speed | 18,000 RPM |
X-axis Drive | Module-2 Precision Rack & Pinion |
Y-axis Drive | Module-2 Precision Rack & Pinion |
Z-axis Drive | Taiwan TBI High-Precision Ball Screw |
Linear Guides | Taiwan 30mm Dust-Proof Square Rails |
Speed Reducer | Zhuolan Precision Planetary Gearbox |
Pneumatic Components | Tuodi Cylinders |
Positioning Cylinders | 6 total: X-axis ×2, Y-axis ×4 |
Inverter | Zhongda 7.5KW Frequency Inverter ×1 |
Command Format | G-Code, PLT, UG, ENG, HPGL, etc. |
Compatible Software | Cabinet design software, TYPE3, JD-Carve, Wentai, UG, CAD, etc. |
Lubrication | Automatic Centralized Lubrication System |
Worktable | 7-Zone Vacuum Adsorption Table |
Power Supply | AC 380V / 3PH / 50Hz |
Low-Voltage Electrical | Delixi Brand |
